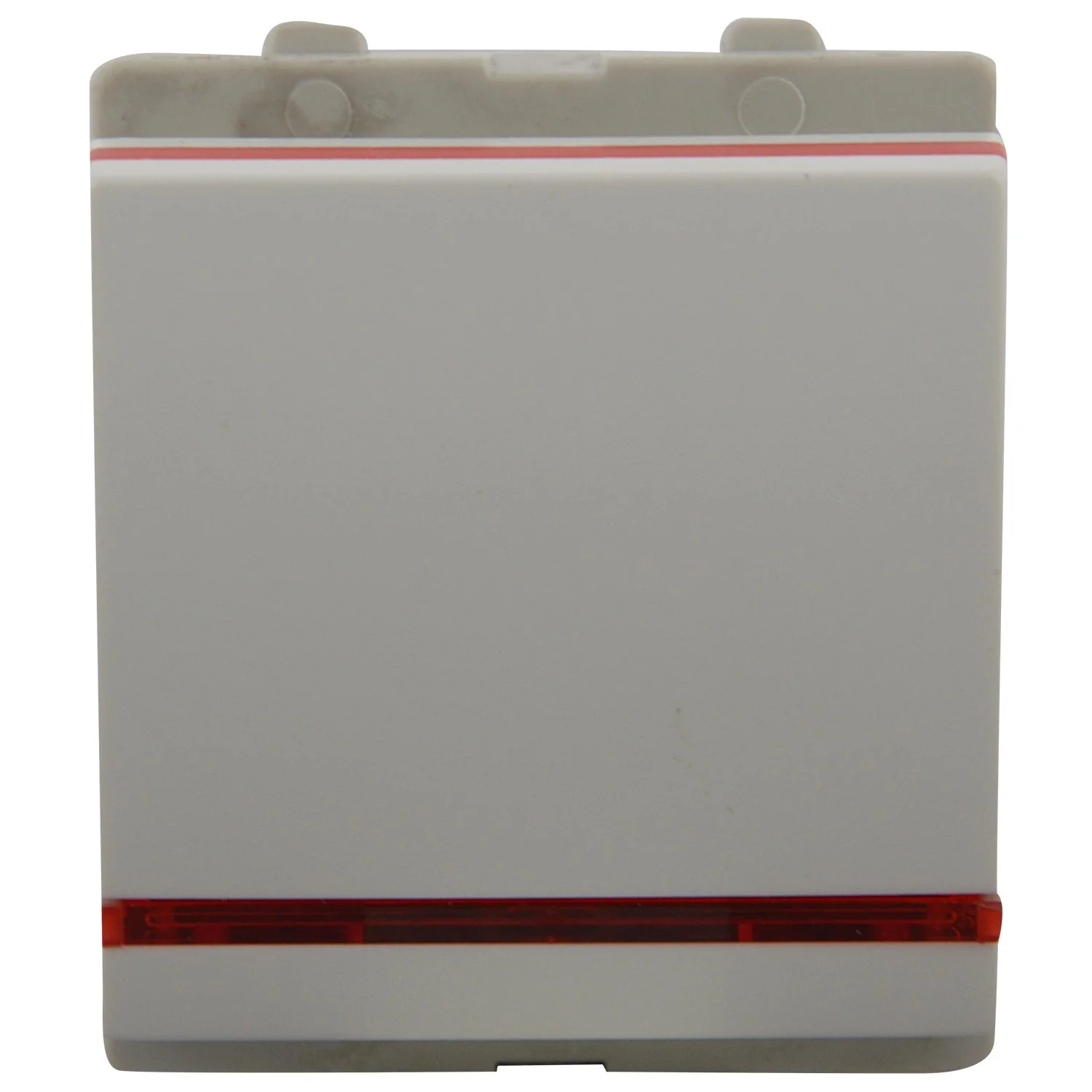

Schneider Electric Opale 20A DP Switch X1268WH (2M)-White
Specifications
| Range | Opale |
|---|---|
| Product or component type | Switch with indicator lamp |
| Device presentation | Mechanism |
| Light source | Neon |
| Quantity per set | Set of 10 |
| Colour tint | White |
| Technology type | Electromechanical |
|---|---|
| Device mounting | Flush |
| Number of modules | 2 modules |
| Actuator | Rocker |
| Switch function | 2-pole |
| Rated current | 20 A |
| [Ue] rated operational voltage | 240 V |
| Lamp function | Indicator |
| Network type | AC |
| Surface finish | Satin |
| Network frequency | 50 Hz |
| Fixing mode | By captive screws |
| Connections - terminals | Shrouded terminals |
| Material | PC: front cover PA6: base cover |
| Height | 48 mm |
| Width | 42 mm |
| Depth | 35.6 mm |
| Standards | IS 3854:1997/A1 |
|---|---|
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -5…35 °C |
| Relative humidity | 10…95 % |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 4.2 cm |
| Package 1 Length | 4 cm |
| Package 1 Weight | 34 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 250 cm |
| Package 2 Width | 265 cm |
| Package 2 Length | 335 cm |
| Package 2 Weight | 4085 g |
$1.82
Original: $5.21
-65%Schneider Electric Opale 20A DP Switch X1268WH (2M)-White—
$5.21
$1.82Product Information
