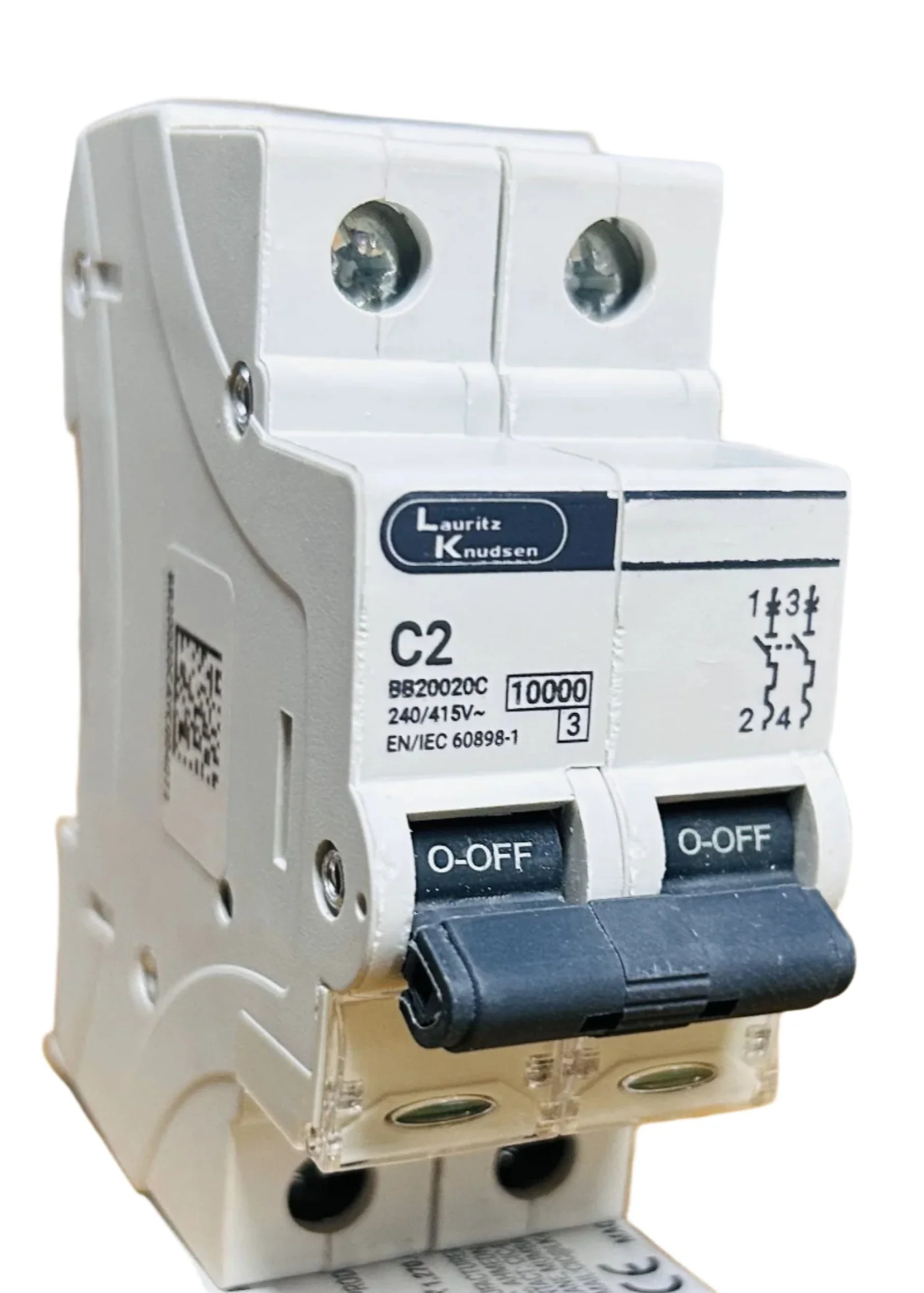

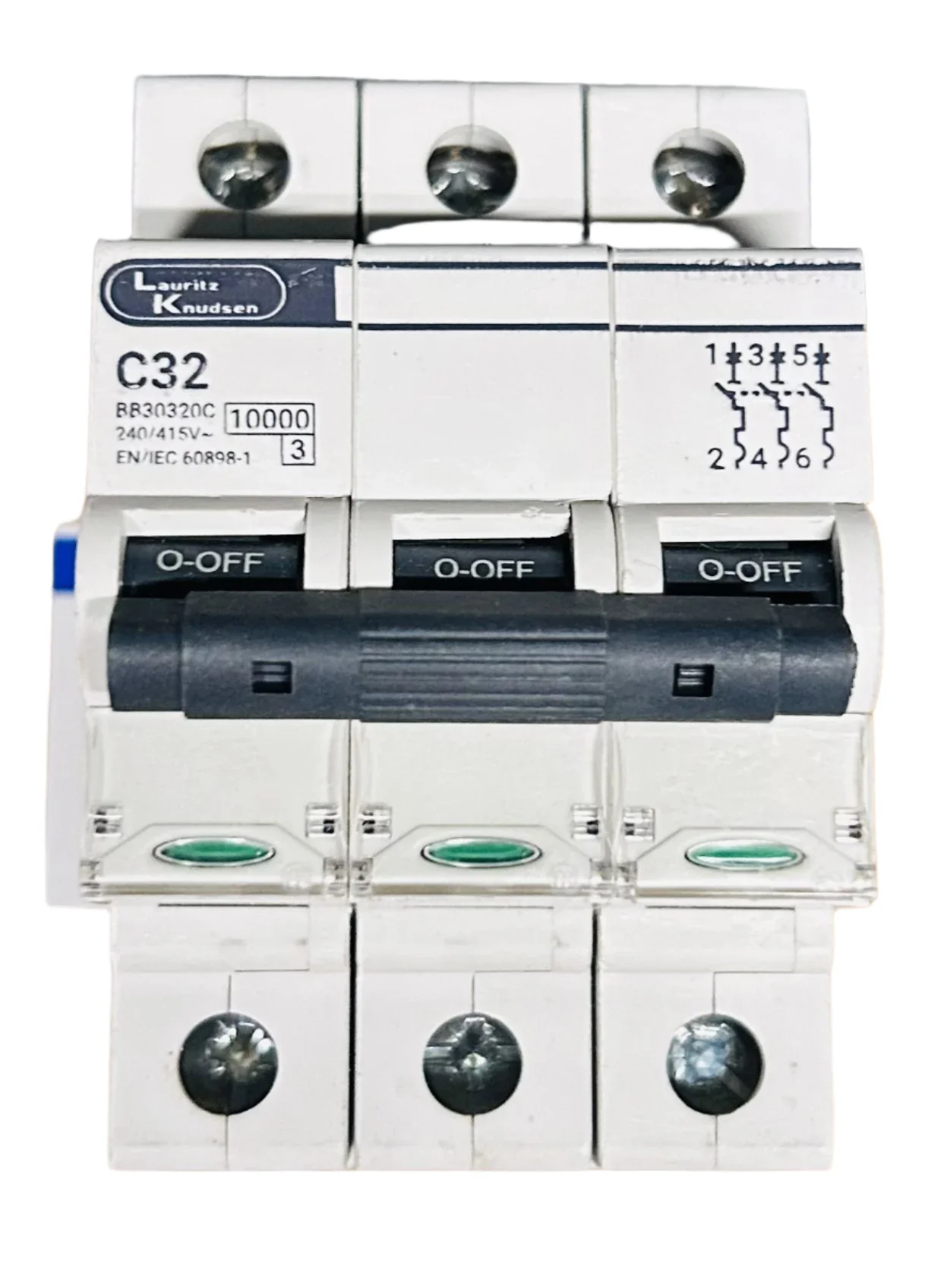

Lauritz Knudsen Exora 240V - 415V AC 10kA - 15kA C Curve MCB
The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60° C |
| Electrical life (Operating Cycles) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (Rigid) 50 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 10kA |
| Rated Impulse Voltage | 6kV |
| Current Rating | 6A-125a |
| Rated operational voltage (Ue) | 240V - 415V |
| Conformance to Standards | IEC 60947-2 |
| Tripping Characteristic | C Curve |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 78.9 |
Select Module
Select Rating
From $1.06
Original: $3.03
-65%Lauritz Knudsen Exora 240V - 415V AC 10kA - 15kA C Curve MCB—
$3.03
$1.06Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MCB is a vital protection device. It is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60° C |
| Electrical life (Operating Cycles) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (Rigid) 50 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 10kA |
| Rated Impulse Voltage | 6kV |
| Current Rating | 6A-125a |
| Rated operational voltage (Ue) | 240V - 415V |
| Conformance to Standards | IEC 60947-2 |
| Tripping Characteristic | C Curve |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 78.9 |
